Reflective Insulating Coatings are used in the industry as a replacement for original insulation or as part of workplace safety. In the construction industry, coatings help to save energy needed for heating or cooling.
Our productsWe have applied THRcoating ALPHA TEMPER and ALPHA ANTICONDENS reflective insulating coatings to steam and chilled water piping in a nuclear power plant, where the coatings are a replacement for conventional insulation.

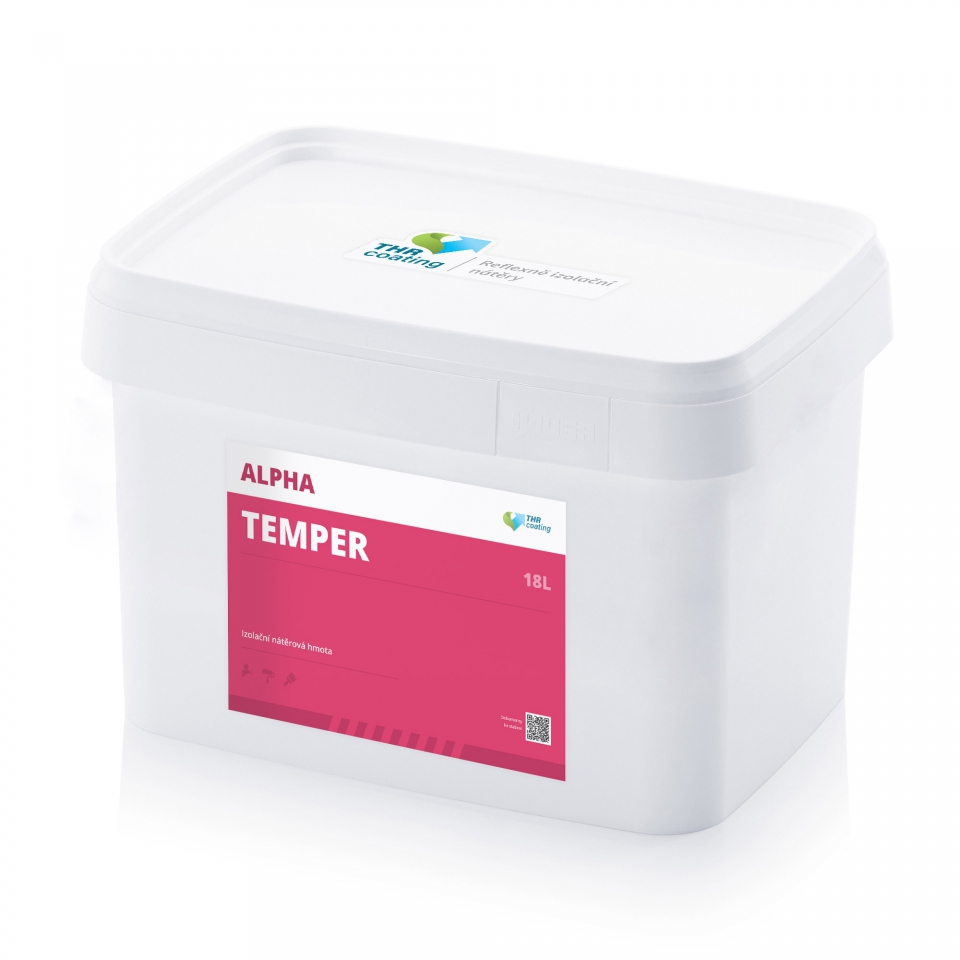

The application was carried out on a steam pipe where the temperatures range from +140 °C to +270 °C, depending on the type of pipe. ALPHA TEMPER coating was applied with a thickness of 4 mm and after the application of the coating the value on the pipe surface is +41 °C.
ALPHA ANTICONDENS coating was applied to the chilled water pipes, where the total thickness of the coating is approximately 6 mm. The chilled water flows in the pipe at a temperature of +6 °C and the ambient temperature is approx. +23 °C. In the past, the different temperatures caused condensation to form on the pipe and therefore faster degradation of the pipe material (carbon steel) due to corrosion. No condensate forms on ALPHA ANTICONDENS coating and the temperature of the pipe surface is the ambient temperature.
We have applied THRcoating ALPHA TEMPER Reflective Insulating Coating to a petroleum product processing facility in a refinery in Europe. The aim was to reduce the surface temperature of the equipment. The original temperature of the equipment before application was +125.9 °C, after applying the coating in a thickness of 4 mm the surface temperature was reduced to +25 °C.
Demonstration of the functionality of ALPHA Temper coating. Half of the electric hotplate is painted with the coating, the other half without insulation at a temperature of approx. 450 °C. No ice cubes will melt on the coated side, on the uncoated side the ice cubes will melt immediately.
Reflective insulating coatings (sometimes referred to as thermo-reflective coatings) are coatings composed of a binder and a filler in the form of ceramic or glass microspheres that are several tens of microns in size. These microsphere coatings prevent heat transfer due to their low conductivity.
Thermal insulating coatings work outdoors on the principle of reflection, reflecting more than 97.75% (TSR) of the sun's radiation based on their composition. In the interior, on the other hand, they work on the principle of absorbing thermal radiation and re-radiating it back into the space.
The coatings can be applied by brush, roller or airless device. For ALPHA INNER or ABAMAL coatings, a flocking or paint roller is ideal. For ALPHA TEMPER or ANTICONDENS coatings it is better to apply with an airless device.
If you apply coatings to your house, you can save even a few tens of percent on your energy bill. THRcoating ALPHA and ABAMAL coatings prevent heat from transferring (escaping) from the building through the building structure. After the application of the coating, the wall surface is warm to the touch. The heat from the radiator does not penetrate the masonry but is radiated back into the room because the coating absorbs the heat radiation into itself. Normally the temperature in the house will increase by 5-6°C, therefore reducing the temperature at the boiler.

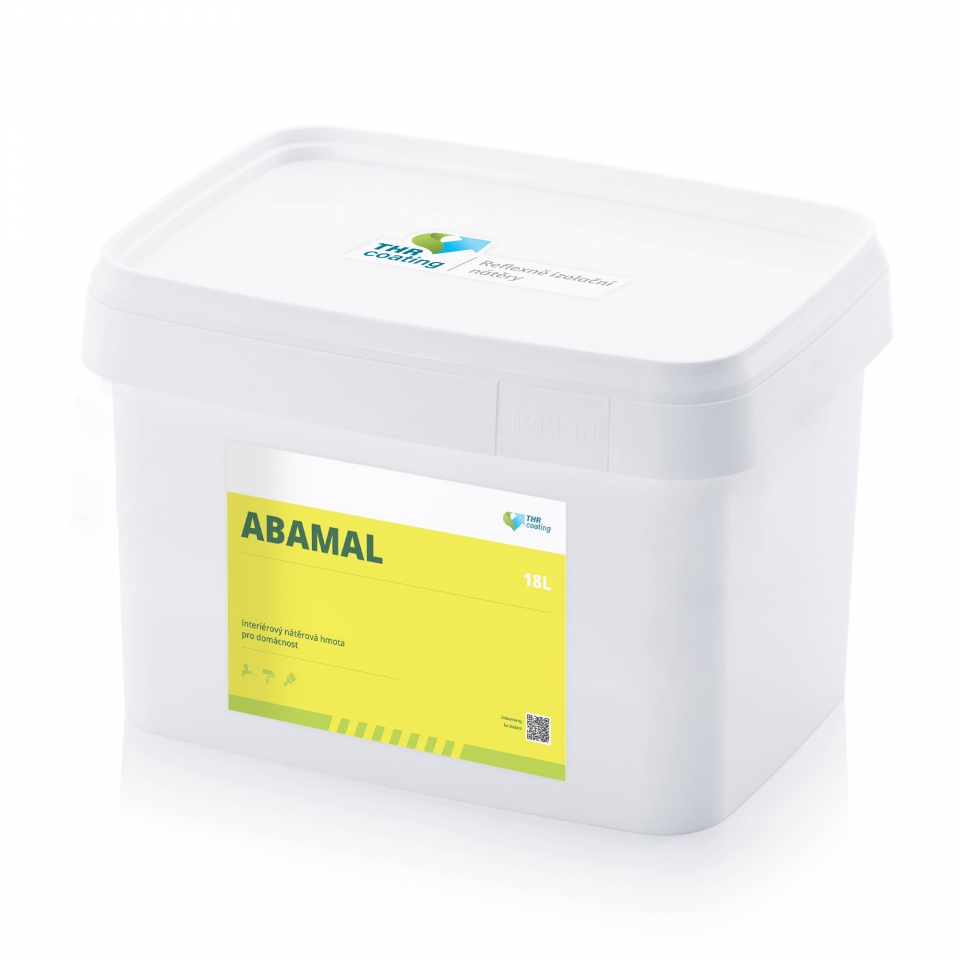

ABAMAL interior coatings distribute the heat evenly over the wall surface. Walls where the coating is applied are warmer to the touch than walls where the coating has not been applied. When heat is distributed evenly over the wall in this way, there is no condensation on the wall and therefore no mould forms on the wall. At the same time, however, the coating allows water vapour to escape and the wall to breathe.
